65/K4B Seat

Manufacturer: KAB Seating
SKU: 203068
Deluxe air suspension seat suitable for construction machinery, compelte with 3-point seat belt. Assembled with a wide platform for improved stability and reduced free-play in heavy duty applications
Enquire for spart parts

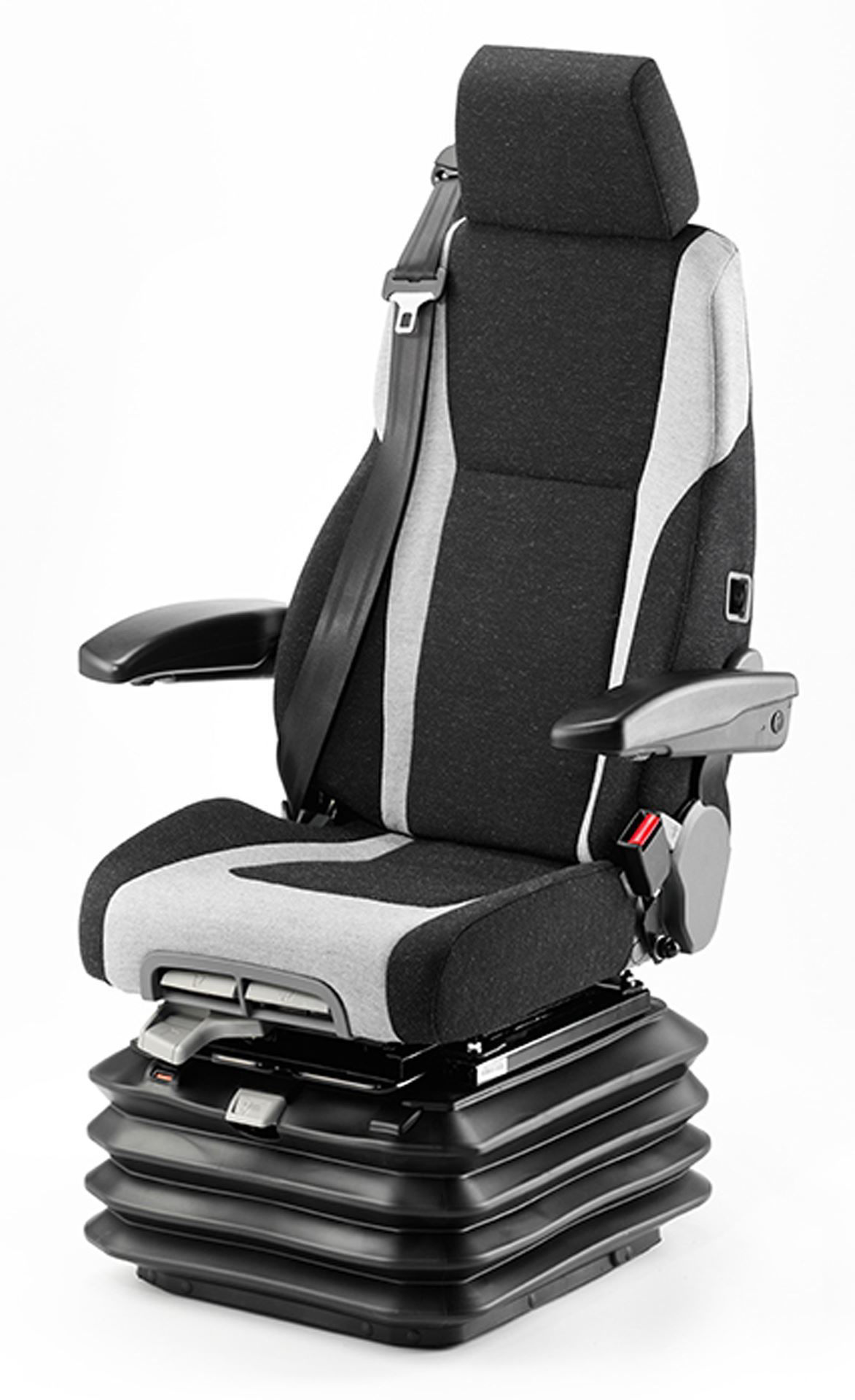

KAB 65/K4B

The 65/K4B is a high back air suspension seat from the 600 series range. It is assembled with a wide platform for improved stability and reduced free-play in heavy duty applications. The adjustable seat base cushion and seat heating comes as standard, to offer exceptional driver comfort. An integrated 3-point seat belt is fitted.

Specifications:

  • Low natural frequency air suspension
  • 160mm vertical suspension stroke
  • Manual adjustment for driver weight, with extended weight range for operators of 50-200kg
  • 60mm integral seat height adjustment
  • Backrest angle adjustment
  • Fore and aft adjustment - 160mm
  • 3-point seat belt
  • 5 position lumbar support
  • Seat heating
  • 50mm seat cushion length adjustment
  • Seat tilt adjustment in 3 positions
  • Adjustable headrest
  • 50mm fore/aft isolator
  • Constant Seat Index Point (SIP) through the use of a Positioning System Module (PSM)
  • Meets 22.kN seat belt requirements without tethers
  • Achieves ISO 7096 seat performance for construction vehicles in categories EM1, EM3, EM4, EM5, EM6 and EM8


Options:

  • Comfort armrests





*
*
*
Description

KAB 65/K4B

The 65/K4B is a high back air suspension seat from the 600 series range. It is assembled with a wide platform for improved stability and reduced free-play in heavy duty applications. The adjustable seat base cushion and seat heating comes as standard, to offer exceptional driver comfort. An integrated 3-point seat belt is fitted.

Specifications:

  • Low natural frequency air suspension
  • 160mm vertical suspension stroke
  • Manual adjustment for driver weight, with extended weight range for operators of 50-200kg
  • 60mm integral seat height adjustment
  • Backrest angle adjustment
  • Fore and aft adjustment - 160mm
  • 3-point seat belt
  • 5 position lumbar support
  • Seat heating
  • 50mm seat cushion length adjustment
  • Seat tilt adjustment in 3 positions
  • Adjustable headrest
  • 50mm fore/aft isolator
  • Constant Seat Index Point (SIP) through the use of a Positioning System Module (PSM)
  • Meets 22.kN seat belt requirements without tethers
  • Achieves ISO 7096 seat performance for construction vehicles in categories EM1, EM3, EM4, EM5, EM6 and EM8


Options:

  • Comfort armrests
