514 Seat

Manufacturer: KAB Seating
SKU: 202859 +

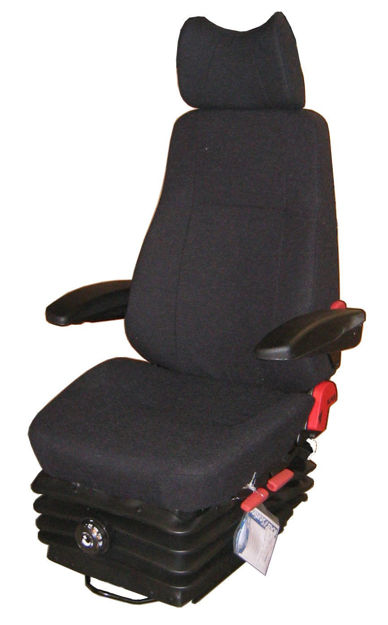

Comprehensive mechanical suspension seat suitable for construction machinery and marine applications.
Enquire for spart parts

514

The 514 is a mechanical suspension seat suitable for construction machinery and marine applications. It has the option of a double damper to further improve the driver weight range and vibration absorption in particularly rough conditions.

Specifications:

  • Mechanical suspension
  • 100mm vertical suspension stroke
  • Manual weight adjustment 50-120kg
  • 60mm integral seat height adjustment
  • Backrest angle adjustment
  • Fore and aft adjustment - 200mm
  • Lumbar support
  • Vibration performance to ISO 7096
  • Seat belt to ISO 6683, SAE J386 (anchorage strength 15Kn)
  • Achieves ISO 7096 seat performance for construction vehicles in categories EM1, EM3, EM4, EM5, EM6 and EM8
  • Range of high quality fabric or PVC

Options:

  • Comfort armrests
  • Adjustable headrest
  • Double damper
  • Turntable 0 degrees - 180 degrees
  • Static or retractable lap belt
  • Operator presence switch



*
*
*
